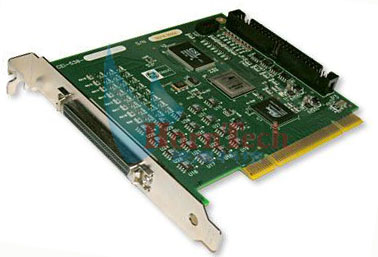

GE Condor RCEI-530板卡功能：
- Up to 16 Rx and 16 Tx ARINC 429 channels；
- High performance, high density interface
with large buffers；
- Easy-to-use BusTools/ARINC Windowsbased
GUI Bus Analyzer available；
- Advanced, high-level software API
included for
– 32-bit Windows 7, Vista, XP, 2000
– 64-bit Windows 7, Vista, XP
– Linux Kernel Version 2.4 and 2.6
– VxWorks
– Visual Basic
- Supports maximum data throughput on
all channels simultaneously；
- 16 input and 16 output discretes that
handle avionics–level voltages；
- Independent, software-programmable bit
rates for all channels；
- Error injection/detection；
- Support for 2-wire ARINC 573, 575, and 717
- IRIG-B Receiver/Generator optional
- Supports 66MHz, 32-bit PCI operation
- PCI-X compatible
|
|
| |
|
|
|
|
|
|
