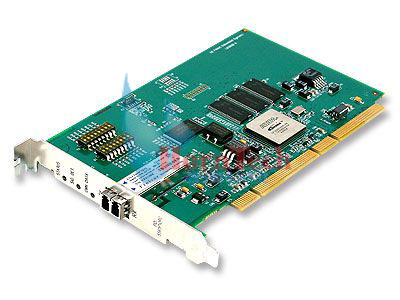

GE PCI-5565PIORC板卡功能：
- Redundant transfer mode for extra error suppression
- Error detection
- Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command
- One independent DMA channel
- 128 Mbyte or 256 Mbyte SDRAM Reflective Memory
- Transfer rate 43 Mbyte/s (4 byte packets) to 170 Mbyte/s (64 byte packets)
- Dynamic packet size, 4 to 64 bytes of data；
- Connection with multimode fiber up to 300m, single mode fiber up to 10km
- Up to 256 nodes
- Data written to memory in one node is also written to memory in all nodes on the network；
- High speed, easy to use fiber-optic network (2.12 Gbaud serially)
- No processor overhead
- No processor involvement in the operation of the network
- PCI 64-bit 66 MHz transfers, 3.3 or 5V, universal add-in card.
|
|
| |
|
|
|
|
|
|
