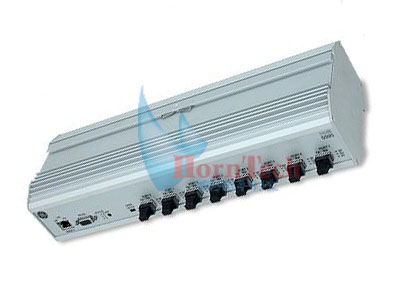

GE hub-5595功能：
- For use with GE Intelligent Platforms 5565 Reflective Memory network of products
- Provides eight ports using small form factor pluggable (SFP) transceivers
- Hub assemblies can be cascaded with a maximum of 256 nodes
- Automatically bypasses defective or disconnected nodes in a fiber-optic network
- Automatic bypass can be optionally controlled by the loss of signal or by the loss of sync pattern
- Each port regenerates the serial optical signal, eliminating link losses and reducing jitter
- 10BaseT Ethernet TCP/IP port for remote access and control
- RS232 port for local access and control
- DIN rail mount enclosure uses 21 to 32 VDC power supply
- Dark on Dark option turns off the port’s transmitter if the receiver does not detect a signal (available for firmware versions 02.00 and later)
|
|
| |
|
|
|
|
|
|
|
|
|
