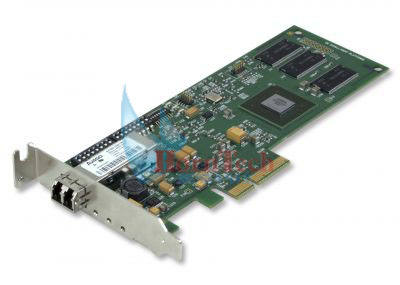

GE PCIE-5565PIORC板卡功能：
- Low profile PCIe form factor
- Redundant transfer mode for extra error suppression
- Error detection
- Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command
- One?independent DMA channel
- 128?Mbyte or?256 Mbyte SDRAM Reflective Memory
- Transfer rate 43 Mbyte/s (4 byte packets) to 170 Mbyte/s (64 byte packets)
- Dynamic packet size, 4 to 64 bytes of data
- Connection with multimode fiber up to 300m, single mode fiber up to 10km
- Up to 256 nodes
- Data written to memory in one node is also written to memory in all nodes on the network
- High speed, easy to use fiber-optic network (2.12 Gbaud serially)
- No processor overhead
- No processor involvement in the operation of the network
- PCI Express 2.5GHz signaling
|
|
| |
|
|
|
|
|
|
